Micro AC gear motor

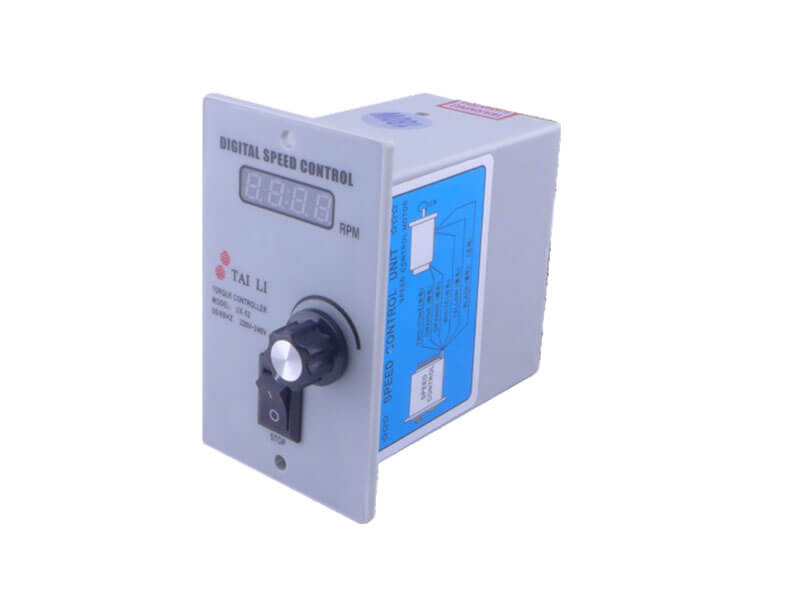

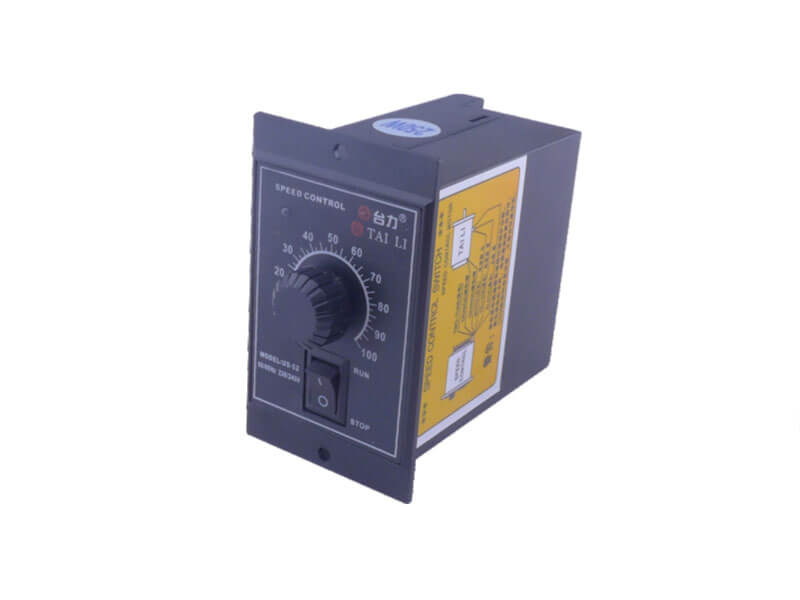

Speed Controller 6-400W
US51,US52 forwarder and Reverse function change

Description of governor model:

S:Speed Governor
11:Single Phase 110V50Hz
A:Built-in Capacitor

S:Separation
22:Single Phase 220V50Hz
B:External Capacitor

Contact Us

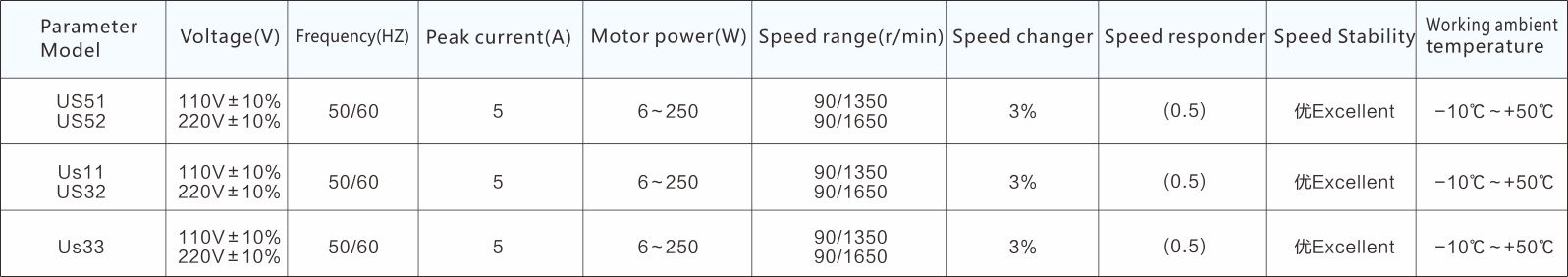

Technical parameters
Installation dimensions
Download

CombinationUS51、US52Clockwise and anti-clockwise sped change

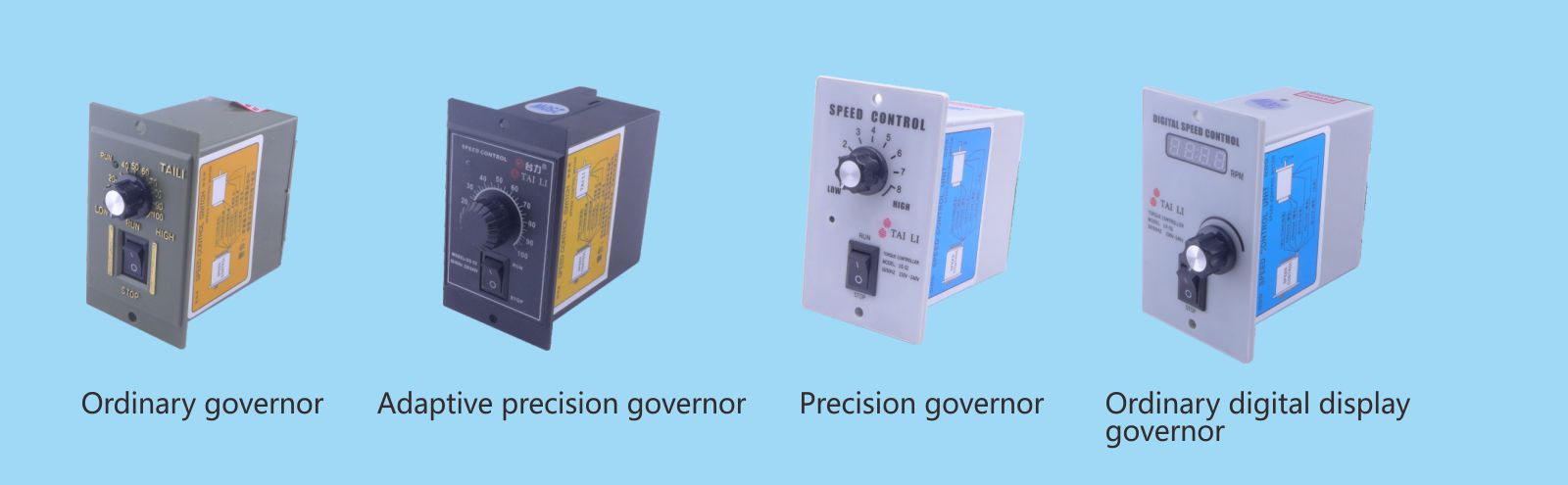

List of speed governor characteristics

Connection diagrams of the controller

CONNECTION DIAGRAMS

Description: The ordinary brake line is two gray lines;
Ruidi brand brake lines are two yellow lines;
Three-phase 380V is three black wires;
Three-phase 220V is three yellow wires;
Three-phase six-wire is three yellow wires and three white wires.
