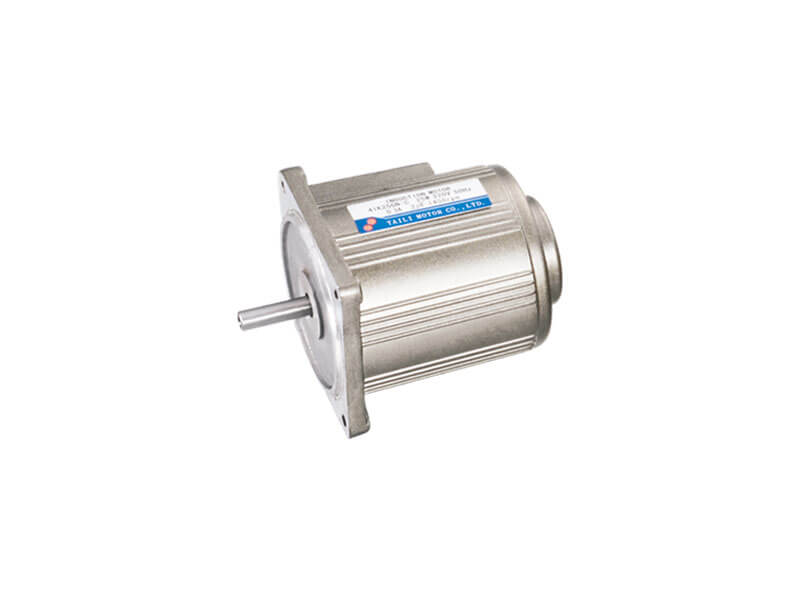

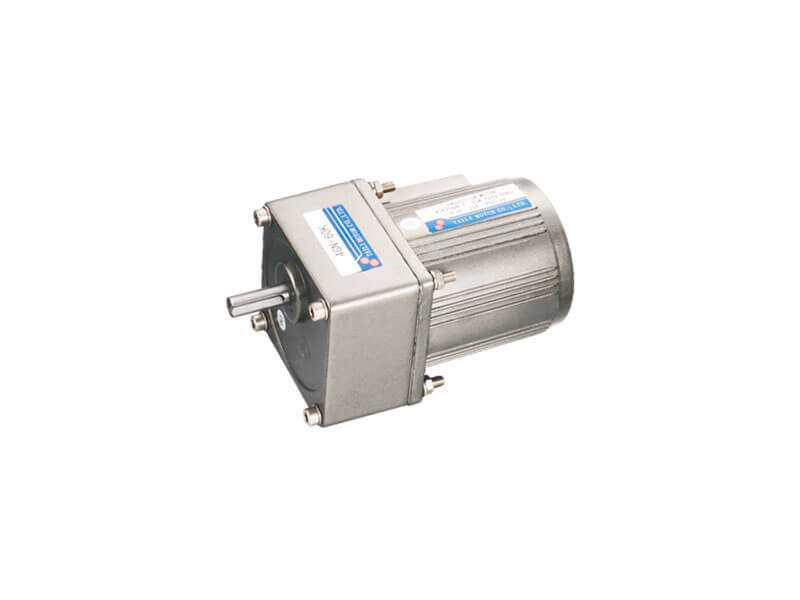

Micro AC gear motor

Torque motor
3W-20W

Feature:

The speed can vary widely。depending on the sloping characteristics.
Torque motors have a high starting torque and Torque motors have a high staring torque and sloping characteristics,allowing easy speed control simplyby changing the voltage of the power supply.(the motor torque changes approximately proportion to the square of the voltage.)

Contact Us
Technical parameters
Installation dimensions
Download

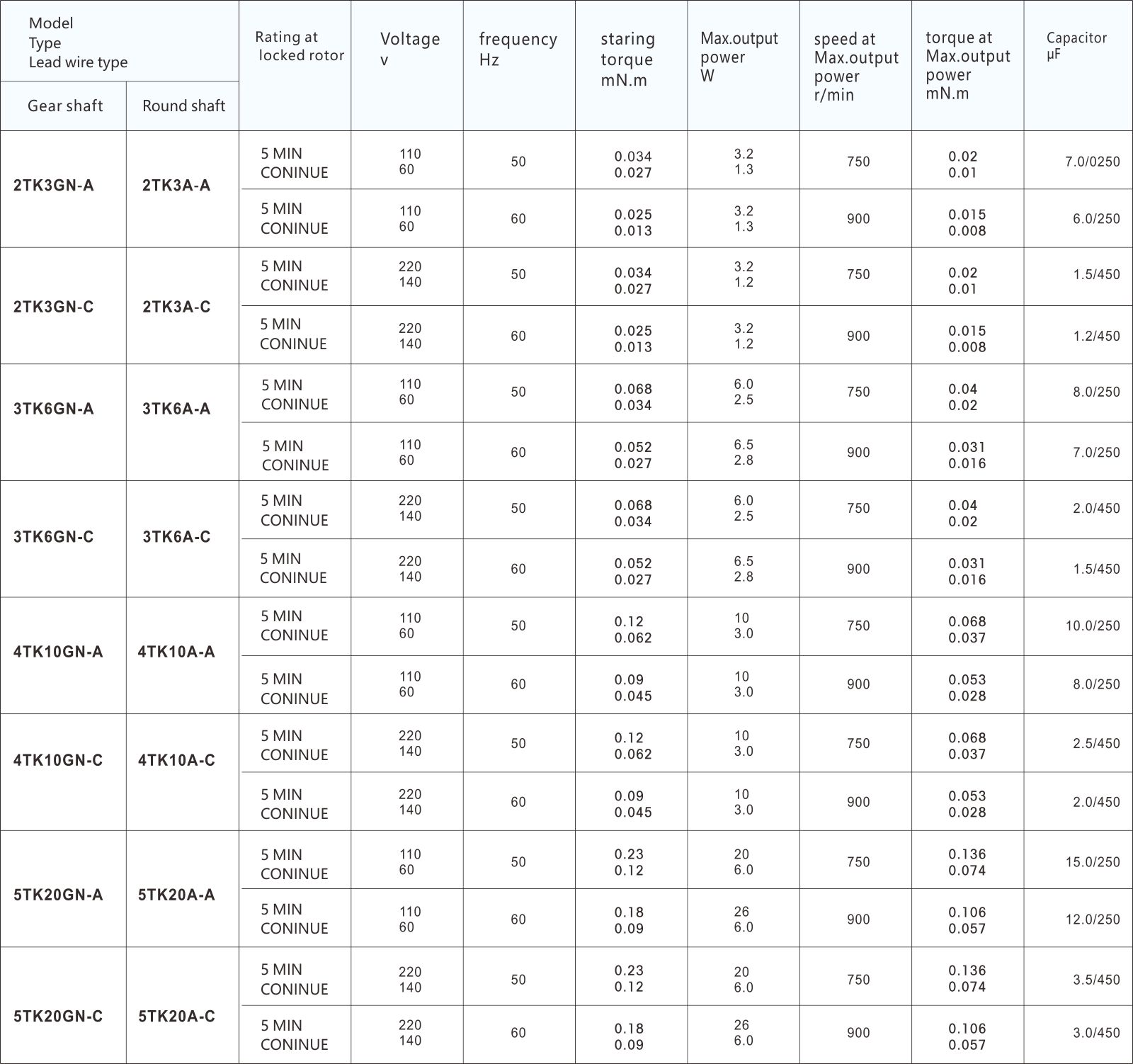

SPECIFICATIONS

torque power: 3W 6W 1 0W 20W

Reference AC constant speed dimensions: 6W 15W 25W 40W

When the motor is approved under various safety standards.the model name on the nameplate is the approved model name.
